Elo 3243L 32" Full HD Open-Frame Touchmonitor Display
Elo 3243L 32" Full HD Open-Frame Touchmonitor Display
Elo 3243L 32" Open-Frame Touchmonitor
- • Elo 3243L | 32 in | 1920 x 1080
- • IntelliTouch Plus | Dual Touch | USB
- • 3000:1 | 178 Degree View | 8 ms
- • VGA + HDMI or DVI-D Inputs
- • Slim 58 mm Open Frame | VESA Mount
- • Refurbished | E326202 | Free Evaluation
This product has been discontinued by the manufacturer. Contact us for replacement options.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Elo | Model: 3243L | Part number: E326202 (IntelliTouch Plus dual-touch, USB); also listed E589724 (Worldwide) and E444804 (Asia)

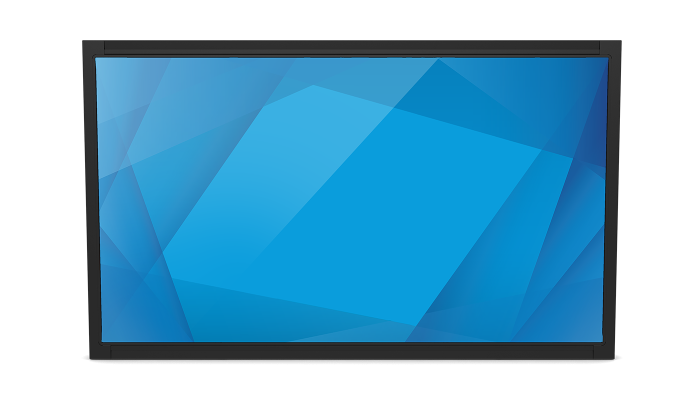

The Elo 3243L is a 32 inch (31.5 inch diagonal), 16:9 open-frame LCD touchmonitor with a native 1920 x 1080 Full HD resolution, LED backlighting and IntelliTouch Plus dual-touch surface acoustic wave touch. Ampronix supplies the Elo 3243L as a refurbished unit for kiosk, retail, hospitality and gaming installations, with sales, service, repair and exchange replacement.
Key capabilities
- 31.5 inch active matrix TFT LCD with a 698.4 x 392.85 mm active area and 16.7 million colors.
- 1920 x 1080 native resolution with 3000:1 typical contrast and a wide 178 degree viewing angle.
- 350 nit LCD panel brightness, 315 nits typical with IntelliTouch Plus.
- IntelliTouch Plus surface acoustic wave touch with dual-touch support over USB.
- Slim 58 mm profile with narrow borders and a water-resistant injection-molded bezel seal.
- Analog VGA input, with HDMI or DVI-D depending on the model, and 400 x 200 mm VESA mounting.
Where it is used
The Elo 3243L is built for retail and hospitality kiosks, transportation and gaming installations, and other public-access applications where a large 32 inch touchscreen is built into a cabinet or wall. The 3243L also serves as a direct replacement for a failed 3243L in an existing enclosure.
Specifications at a glance
- Model 3243L, part numbers E326202, E589724, E444804
- 31.5 inch, 1920 x 1080, 16:9, 3000:1 contrast, 178 degree viewing angle
- VGA plus HDMI or DVI-D (by model), IntelliTouch Plus dual-touch over USB
- 735.4 x 443 x 58 mm, 12.3 kg (27.1 lb) unpackaged
- 55 W typical, 100 to 240 VAC, 50/60 Hz
Frequently asked questions
Is the Elo 3243L available refurbished?
Yes. Ampronix supplies the Elo 3243L as a refurbished unit, subject to availability. Call Ampronix for current stock and pricing.
Does the Elo 3243L support multi-touch?
The Elo 3243L uses IntelliTouch Plus surface acoustic wave touch, which supports dual-touch over a USB interface.
Which video inputs does the Elo 3243L have?
Elo's datasheet lists analog VGA on all models, HDCP-capable HDMI on the ET3243L-XXWA models, and dual-link DVI-D on the ET3243L-XXAA models. Check your unit's model label to confirm which applies.
What replaced the Elo 3243L?
Elo lists the 3243L as replaced by the 3263L. Ampronix can supply refurbished 3243L units and advise on a suitable replacement.
Does Ampronix repair and exchange the Elo 3243L?
Yes. Ampronix offers sales, service, repair and exchange replacement for the Elo 3243L. Call Ampronix for a free evaluation and quote.
Ampronix supplies the Elo 3243L and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Elo touchmonitor line.
Also referenced as: ET3243L, Elo3243L, Elo-3243L, Elo ET3243L, 3243L open frame, part numbers E326202, E589724, E444804.
Related: Elo products, Touch Screen Display Monitors.
