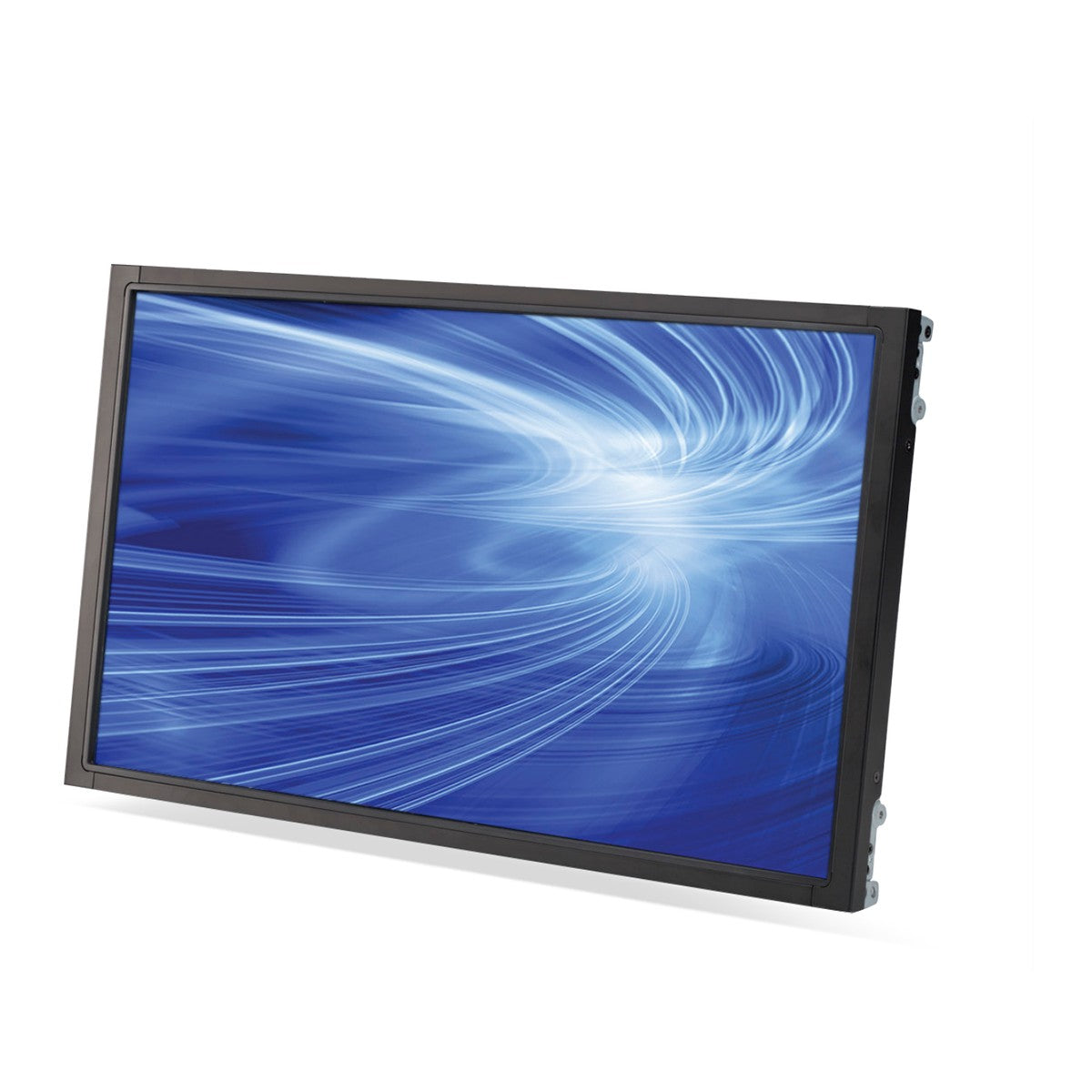

Elo 2240L 22 inch open-frame touchmonitor

Details

Manufacturer: Elo | Model: 2240L (ET2240L) | Part number: E496859 (Americas), E186354 (EMEA)

The Elo 2240L (ET2240L) is a 22 inch, 16:10 open-frame LCD touchmonitor with a native 1680 x 1050 resolution, Elo IntelliTouch surface acoustic wave touch, and analog VGA and digital DVI-D inputs. Ampronix supplies the Elo 2240L (E496859) as a refurbished unit for gaming cabinet, kiosk and OEM integration needs, with sales, service, repair and exchange replacement.

Key capabilities

22.0 inch active matrix TFT LCD with a 474 x 296 mm active area and 16.7 million colors.
1680 x 1050 native resolution with 1000:1 typical contrast and 270 cd/m2 typical brightness with IntelliTouch.
Wide 178 degree viewing angle with 16 ms typical response time.
Elo IntelliTouch surface acoustic wave touch with dual serial and USB touch interfaces.
Analog VGA (15-pin D-sub) and DVI-D inputs, with on-screen display controls and power and control lockouts.
Open-frame design with a hardened anodized metal front bezel, L-mounting brackets and VESA mounting in landscape or portrait.

Where it is used

The Elo 2240L is built for casino gaming machines, video game and amusement cabinets, self-service kiosks and other OEM enclosures where a 22 inch touchscreen is mounted behind a panel. The 2240L suits rear-mount installations in landscape or portrait, and replacement of a failed Elo 2240L in an existing cabinet.

Specifications at a glance

Part number E496859 (Americas) and E186354 (EMEA), model 2240L (ET2240L)
22.0 inch, 1680 x 1050, 16:10, 1000:1 contrast, 178 degree viewing angle
VGA 15-pin D-sub and DVI-D inputs, IntelliTouch with serial and USB
Internal power supply, 100 to 240 VAC, 50/60 Hz
500 x 332 x 80 mm, 7.5 kg (16.6 lb) unpackaged

Frequently asked questions

Is the Elo 2240L (ET2240L) available refurbished?

Yes. Ampronix supplies the Elo 2240L as a refurbished unit, subject to availability. Call Ampronix for current stock and pricing.

What is the difference between the Elo 2240L and the Elo 2242L?

Both are 22 inch open-frame Elo touchmonitors. The 2240L has a 16:10 1680 x 1050 panel with VGA and DVI-D inputs, while the 2242L is a later 22 inch open-frame model. Match the exact model printed on your unit's label before ordering.

Which touch technology does the Elo 2240L use?

Elo's datasheet lists IntelliTouch surface acoustic wave with serial and USB touch interfaces. Earlier 2240L versions were also offered with surface capacitive touch.

Which Elo 2240L part numbers does Ampronix cross-reference?

Elo's datasheet lists E496859 (Americas) and E186354 (EMEA), both IntelliTouch with dual serial/USB and a clear surface. Earlier part numbers include E180392, E657914 and E944337. Call Ampronix with your label to confirm the exact match.

Does Ampronix repair and exchange the Elo 2240L?

Yes. Ampronix offers sales, service, repair and exchange replacement for the Elo 2240L. Call Ampronix for a free evaluation and quote.

Ampronix supplies the Elo 2240L and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Elo touchmonitor line.

Also referenced as: ET2240L, Elo2240L, Elo-2240L, Elo ET2240L, 2240L open frame, part numbers E496859, E186354, E180392, E657914, E944337.

Specifications

Manufacturer: Elo (Elo TouchSystems)

Model: 2240L / ET2240L

Part Number: E496859 (IntelliTouch, dual serial/USB, clear, Americas); E186354 (IntelliTouch, dual serial/USB, clear, EMEA)

Earlier Part Numbers: E180392 (IntelliTouch, Americas), E657914 (surface capacitive, Americas), E944337 (IntelliTouch, EMEA)

Also Known As: ET2240L, Elo 2240L open frame

Condition: Refurbished

Status: Discontinued by Elo

Screen Size: 22.0 in diagonal, 16:10

Screen Technology: Active matrix TFT LCD

Native Resolution: 1680 x 1050

Active Area: 474 x 296 mm (18.7 x 11.7 in)

Colors: 16.7 million

Brightness: 270 cd/m2 typical with IntelliTouch

Contrast Ratio: 1000:1 typical

Viewing Angle: 178 degrees total, horizontal and vertical (CR > 10)

Response Time: 16 ms typical

Touch Technology: IntelliTouch surface acoustic wave

Touch Interface: Serial and USB

Video Inputs: Analog VGA 15-pin D-sub; DVI-D

Power Input: Internal supply, 100-240 VAC, 50/60 Hz, IEC 60320 C6 inlet

Dimensions: 500 x 332 x 80 mm (19.7 x 13.1 x 3.1 in)

Weight: 7.5 kg (16.6 lb) unpackaged; 10.7 kg (23.5 lb) packaged

Mounting: VESA mount with L-mounting brackets, landscape or portrait

Enclosure: Black, front-facing hardened anodized metal bezel

On-Screen Display: Rear menu, up, down and select controls; eight languages; power and control lockouts; cabled remote OSD supported

Operating Temperature: 0 to 40 C

Storage Temperature: -20 to 60 C

Humidity: Operating 20 to 80%, storage 10 to 90%, non-condensing

Reliability: MTBF 50,000 hours demonstrated

Certifications: UL, cUL, FCC, CE, C-Tick, CCC, VCCI, MIC, BSMI, S-mark, NOM, PCT, RoHS

Accessories: E378229 replacement cable kit; E622897 remote OSD; D82064-000 IntelliTouch stylus
