Eizo LS580W 58" 4K UHD Large Cath Lab Surgical Monitor
Eizo LS580W 58" 4K UHD Large Cath Lab Surgical Monitor
Eizo RadiForce LS580W 58-inch 4K UHD Large Cath Lab Surgical LCD Monitor
- • 8MP 4K Ultra HD Operating Room (OR) Display
- • The thinner bezels allow for a larger screen size compared with the monitor's predecessor, the RadiForce LS560W while keeping the size and weight of the monitor consistent.
- • Comfortably View from Any Angle
- • Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time
- • Diagnostic Precision
- • Keep Your Monitor Lit Longer
- • View Accurate Images in Moments

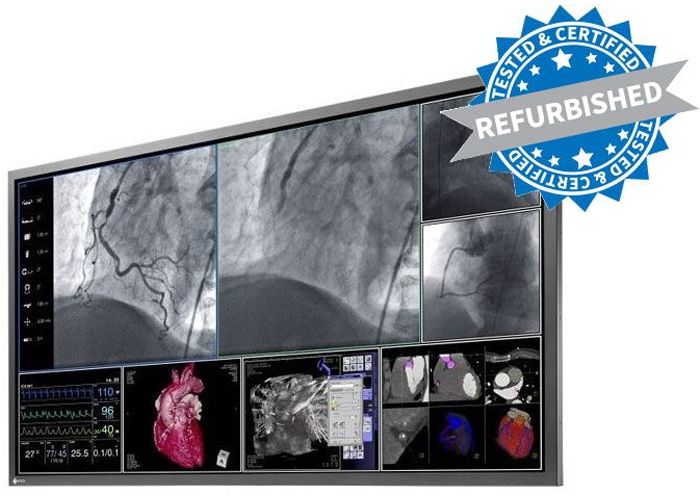

- • Ampronix Certified Refurbished
- • 1 Year Warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Eizo | Model: LS580W | Part number: 6GF6200-8AB01 (also written 6GF62008AB01)

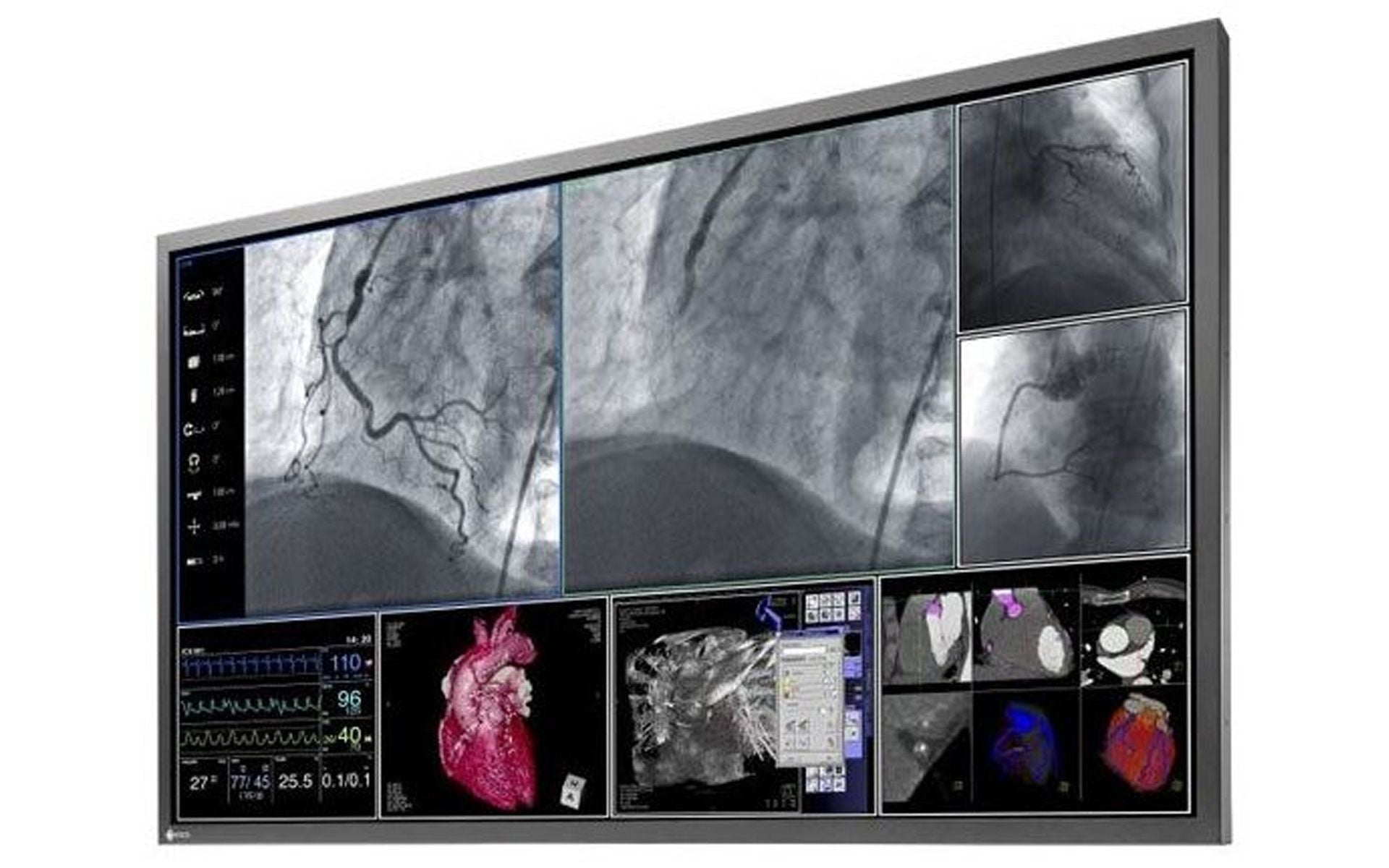

Eizo RadiForce LS580W 58 Inch 8MP 4K Ultra HD Operating Room LCD Monitor Display. A large 58-inch monitor is ideal for operating rooms where multiple medical images need to be displayed simultaneously. The monitor can display 8 megapixels of high-resolution data in the level of detail essential for the OR.
The RadiForce LS580W is equipped with two independent mercury-free LED backlights that are highly efficient compared to conventional CCFL backlights, saving energy even when running at high brightness levels.
Redundant power supplies and backlights, as well as two DVI inputs, give the monitor a high degree of operational reliability for creating a fail-safe environment. A monitoring function can be configured to notify the X-ray system in the event operating conditions becomes critical or a component fails to ensure maximum safety.
The thinner bezels allow for a larger screen size compared with the monitor's predecessor, the RadiForce LS560W, while keeping the size and weight of the monitor consistent. This allows convenient installation using the same ceiling suspensions as the previous model.
Model: LS580W, Part Number: 6GF6200-8AB01, 58" 8MP Medical Display Monitor (Siemens)
Model: LS580W-GE, Part Number: 6GF6200-8AB03, OEM: 5496367-2, 58" 8MP Medical Display Monitor (GE)
Where it is used
The Eizo LS580W is installed in operating rooms, cardiac catheterization laboratories, and interventional radiology suites for coronary angiography, structural heart procedures, peripheral vascular intervention, and general surgical visualization requiring simultaneous multi-image display.
Specifications at a glance
- Screen: 57.5-inch diagonal (146cm); resolution: 3840 x 2160 (8MP, 16:9); panel: Color TFT LCD (VA)
- Brightness: 700 cd/m2 max / 350 cd/m2 calibrated; contrast: 4000:1; response: 9.5ms; viewing angle: 176/176 deg
- Inputs: 2x DVI-D dual link; power: 400W (standby <38W); weight: 47 kg (103.6 lbs) without stand
- Part number: 6GF6200-8AB01 / 6GF62008AB01 (Siemens); GE variant 6GF6200-8AB03 / 6GF62008AB03, OEM 5496367-2
Frequently asked questions
- Is the Eizo LS580W 6GF6200-8AB01 available new or refurbished? - Ampronix supplies the LS580W as a new unit, subject to availability, along with service, repair, and exchange replacement support.
- What is the difference between the Eizo LS580W and the LS580W-GE? - The LS580W (6GF6200-8AB01) is configured for Siemens cath/angio systems, while the LS580W-GE (6GF6200-8AB03) is configured for GE Healthcare systems. Both share the same 58-inch 8MP panel and specifications.
- Does Ampronix repair or service the Eizo LS580W? - Yes. Ampronix is an authorized Eizo distributor and provides service, repair, and exchange replacement units for the LS580W and the broader RadiForce line.
Ampronix is an authorized Eizo distributor and carries a full range of Eizo RadiForce products and accessories. Ampronix also offers professional service, repair, and exchange replacement support for the Eizo LS580W and the broader RadiForce line.
Also referenced as: EizoLS580W, Eizo-LS580W, LS580WGE, 6GF62008AB01, 6GF6200-8AB01, 6GF62008AB03, 6GF6200-8AB03, OEM 5496367-2.
