Eizo LS560W 56" 4K UHD Large Cath Lab Surgical LCD Monitor

Details

The Eizo RadiForce LS560W is a 56-inch Quad Full High Definition (QFHD) features the resolution of 8.29 megapixels which is equal to that of four full HD monitors. It enables a new dimension in medical imaging, allowing high flexibility in arranging different screen layouts. No panel color differences and no obtrusive bezels require less eye movement and less potential for distraction as compared with multi-monitor use.

Ampronix offers refurbished units for exchange and Hot Swap replacement for in-stock products or repair your existing product as well as offer replacement options with Rush service available.

Model: LS560W, Part Number: 6GF6200-8AA01, 56" 8MP Medical Display Monitor (Siemens 6GF62008AA01)

Model: LS560W ST, Part Number: 6GF6200-8AA02, 56" 8MP Medical Display Monitor (Toshiba 6GF62008AA02)

Model: LS560W GE, Part Number: 6GF6200-8AA03, 56" 8MP Medical Display Monitor (GE 6GF62008AA03)

Specifications

Manufacturer: Eizo

Condition: Refurbished

Modality: Surgical

Calibrated Luminance: 350 cd/m²

Certifications: CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, FCC-A, RoHS, CCC

Contrast Ratio: 1200:1

Maximum Luminance: 700 cd/m²

Mounting Options: VESA standard 400 x 400 mm

Name Plate Item: LS560W, LS560W-GE, LS560W-ST

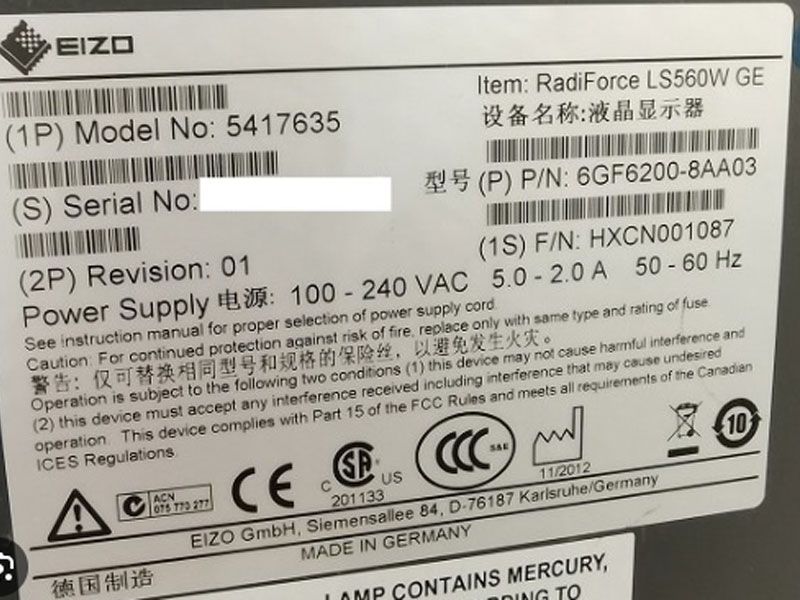

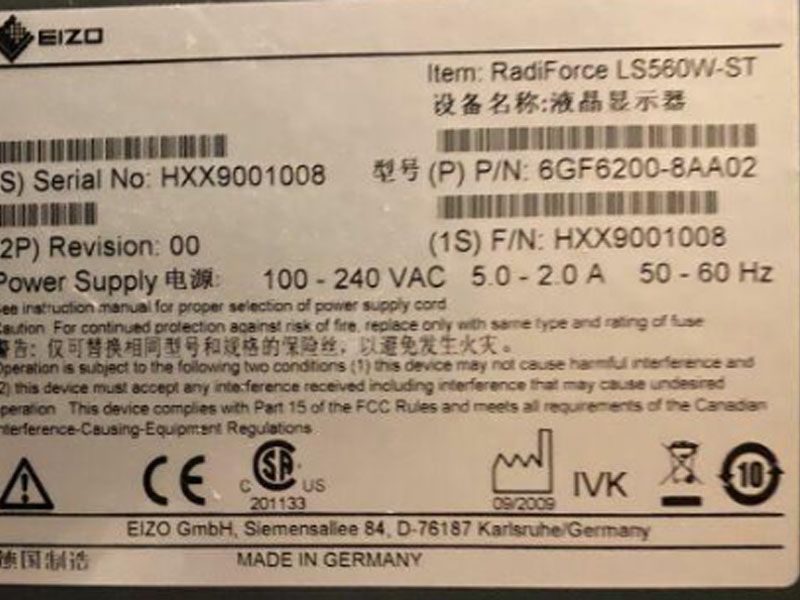

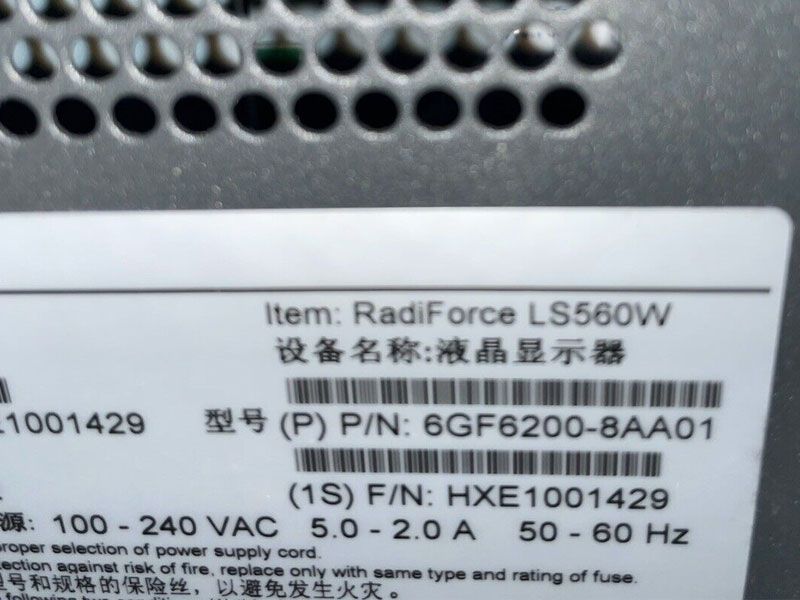

Name Plate Model: 5417635

Name Plate Part Number: 6GF6200-8AA01, 6GF6200-8AA02, 6GF6200-8AA03

Pixel Pitch: 0.324 x 0.324 mm

Power Consumption: 500 W

Power Input: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

Power Save Mode: Less than 41 W

Resolution: 3840 x 2160 (16:9 aspect ratio)

Response Time: 6.5 ms (Midtone)

Screen Size: 143 cm / 56.2 Inches (1,430 mm diagonal)

Screen Technology: TFT Color LCD Panel (VA)

Video Inputs: DVI-D (dual link ) x 2

Viewing Angle: 176°, 176°

Warranty: 1 Year

Weight (Without Stand): 49 kg

Resources

• Eizo-RadiForce-LS560W-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Eizo LS560W 56" 4K UHD Large Cath Lab Surgical LCD Monitor

Name: Eizo LS560W 56" 4K UHD Large Cath Lab Surgical LCD Monitor
Brand: EIZO
SKU: EIZO-RADIFORCE-LS560W
Availability: InStock

Manufacturer: EIZO

Type: Surgical Displays

Eizo LS560W 56-inch 4K UHD Large Cath Lab Surgical LCD Monitor

• Redundant power supplies for backlight and monitor electronic
• Fully Automated Stability through the Integrated Stability System (ISS)
• DICOM/CIE compliant grayscale response built into the monitor
• Integrated uniformity correction for homogenous luminance
• 5 user-defined 11-bit look-up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one monitor to the next
• Built-in connector for spotmeter
• Fully supported by the SMfit Total Care family of quality assurance tools

This model is End of Life.
