Details

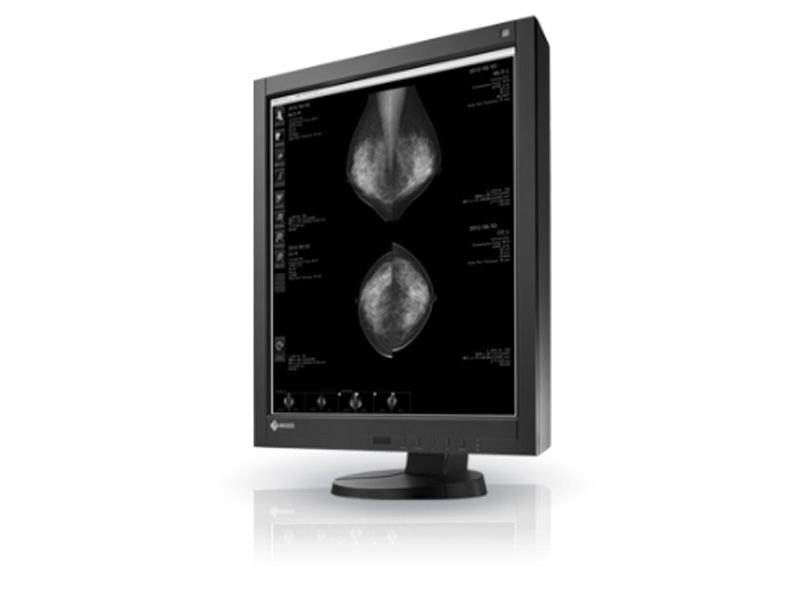

Eizo RadiForce GX540-CL-P-BK 5MP 54cm (21.3") Monochrome LCD Monitor with AMD FirePro W5100 PCIe x16 video card.

The GX540 includes FDA 510(k) clearance to ensure that the monitor is capable of displaying detailed breast screening images where high performance is essential. The 5 MP LCD monitor allows you to see smaller details that are essential in digital mammography. The monitor also offers a high contrast ratio to accurately render the finer details in the image. Maintain the precision with DICOM Part 14 using the bundled RadiCS LE quality control software. EIZO's highly versatile stand offers tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort. The monitors meet the strictest medical, safety, and EMC emission standards.

Model: GX540-BK 1 Head without video card (N/A)

Model: GX540-CL-P-BK 1 Head without video card (N/A)

Bundle: GX540-SH-NM200 1 Head with NVIDIA Quadro M2000 video card (N/A)

Bundle: GX540-DH-NM200 2 Head with NVIDIA Quadro M2000 video card (N/A)

Bundle: GX540-SH-AW510 1 Head with ATI FirePro W5100 video card (N/A)

Bundle: GX540-DH-AW510 2 Head with ATI FirePro W5100 video card (N/A)

Bundle: GX540-CL-SH-N200D5DE 1 Head with NVIDIA Quadro Q2000D video card (N/A)

Bundle: GX540-CL-DH-N200D5DE 2 Head with NVIDIA Quadro Q2000D video card (N/A)

Bundle: GX540-SH-AW5005DE 1 Head with ATI FirePro W5000 video card (N/A)

Bundle: GX540-DH-AW5005DE 2 Head with ATI FirePro W5000 video card (N/A)

Specifications

Manufacturer: Eizo

Condition: Refurbished

Modality: Mammography

Accessories: AC power cord, dual link signal cable (DVI-D - DVI-D), signal cable (DisplayPort - DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user's manual)

Calibrated Luminance: 500 cd/m²

Certifications: CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R

Contrast Ratio: 1200:1

Maximum Luminance: 1,200 cd/m²

Mounting Options: VESA standard 100 x 100 mm

Pixel Pitch: 0.165 x 0.165 mm

Power Consumption: 108 W

Power Input: AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

Power Save Mode: Less than 0.7 W

Resolution: 2048 x 2560

Response Time: 25 ms (On/Off)

Screen Size: 54 cm / 21.3 Inches (540 mm diagonal)

Screen Technology: TFT Monochrome LCD Panel (IPS)

Video Inputs: DVI-D (dual link) x 1, DisplayPort x 1

Viewing Angle: 176°, 176°

Warranty: Five Years

Weight (With Stand): 11.5 kg, 25.35 Lbs

Weight (Without Stand): 8.8 kg, 19.4 Lbs

Resources

• Eizo-RadiForce-General-2015-Brochure.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Eizo RadiForce GX540 5MP Mammography Monitor

Name: Eizo RadiForce GX540 5MP Mammography Monitor
Brand: EIZO
SKU: EIZO-RADIFORCE-GX540
Availability: InStock

Manufacturer: EIZO

Type: Mammography & Tomosynthesis Displays

Eizo GX540 5MP 54.1cm (21.3") Monochrome Mammography Display Monitor

• 5MP 21.3" Digital Mammography Monochrome LCD Monitor
• Environmentally-friendly LED backlight
• Compliant with the DICOM Part 14 standard
• The Integrated Front Sensor allows the monitor to self-calibrate
• High contrast ratio of 1200:1
• Digital Uniformity Equalizer (DUE)

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EIZO-RADIFORCE-GX540
