Manufacturer: Eizo | Model: FPP5500 | Part number: FPP5500

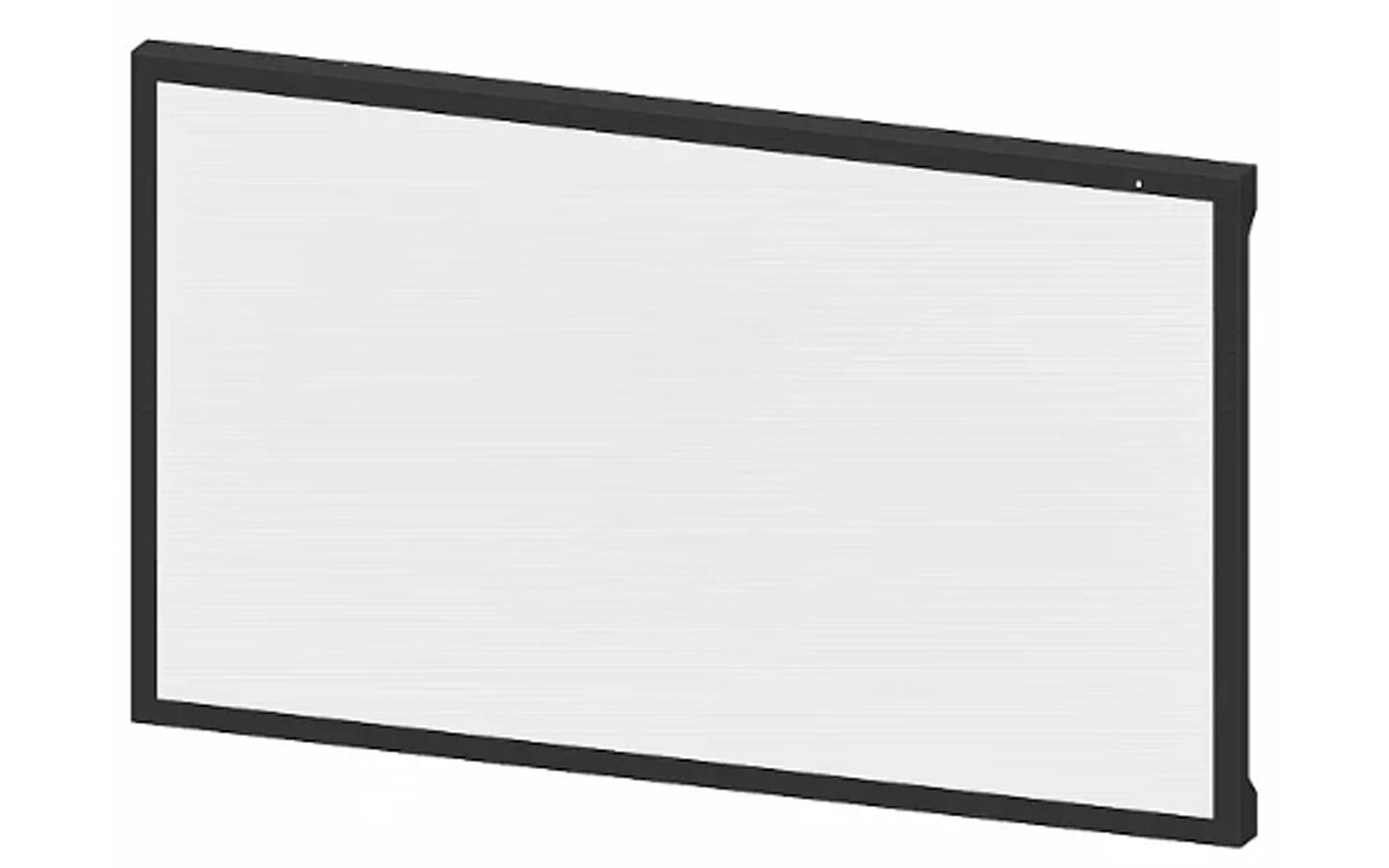

The Eizo FPP5500 Protective Screen Panel is a medical-grade anti-reflective protective cover for 55-inch cath lab and surgical LCD monitors, designed to shield the display panel from mechanical damage, fluid ingress, and contamination in demanding interventional radiology and operating room environments. The FPP5500 can be mounted directly onto the monitor even when it is already installed in the system — no system downtime required. Anti-reflective coating maintains continuous image quality without introducing glare or reducing diagnostic confidence. Ampronix supplies the Eizo FPP5500 Protective Screen Panel as a new unit.

Key capabilities

• Mechanical protection for 55" surgical and cath lab displays: shields the monitor panel from accidental contact, instrument impact, fluid splatter, and contamination during interventional procedures
• Anti-reflective coating: maintains full diagnostic image quality without introducing reflections or hotspots under bright cath lab and OR lighting conditions
• Fluid ingress protection: IP20-rated enclosure protects the monitor front from fluid exposure during procedures — critical for cath lab and hybrid OR environments
• In-system installation: the FPP5500 can be mounted directly onto an already-installed monitor without removing it from the ceiling suspension, boom, or wall mount
• Ceiling suspension weight compatibility: FPP5500 adds 12.5 kg ±1 kg to the monitor mount — verify that ceiling suspension or boom arm is rated for the additional load before installation

Compatible monitors

The Eizo FPP5500 Protective Screen Panel is confirmed compatible with the following 55-inch monitor models per the official Eizo FPP5500 Installation Manual (IFU rev. 07/2019):

• Siemens DSC5515-DC (part number 10656054, Eizo cross-ref 6GF62008BA00) — 55" 8MP 3840x2160 cath lab monitor for Siemens Artis Zee and Axiom Artis Q interventional systems
• Eizo CuratOR LX550W (6GF62008BA01) — 55" 4K UHD surgical LCD monitor for angiography, cardiology, and OR visualization
• Eizo CuratOR LX550W JP (6GF62008BA04) — Japan-market variant of the CuratOR LX550W

Where it is used

The Eizo FPP5500 is installed in interventional radiology suites, cardiac catheterization labs (cath labs), hybrid operating rooms, and electrophysiology labs running Siemens Artis Zee, Siemens Axiom Artis Q, and Eizo CuratOR-equipped imaging systems. The protective screen is standard specification in high-throughput cath labs where 55-inch primary display monitors are exposed to contrast agent splatter, draping contact, and instrument handling during coronary angiography, peripheral vascular intervention, structural heart procedures, and neurointerventional cases.

Installation notes

• The FPP5500 adds 12.5 kg ±1 kg to the display assembly — ceiling suspensions and boom arms must be verified for the additional load before installation
• Installation is possible with the monitor already mounted in the system — no system takedown required
• The FPP5500 is specific to 55-inch monitors in this compatibility list — it is not interchangeable with the FPP5800 (which covers 56-inch monitors including the RadiForce LS580W and LS560W)

Specifications at a glance

• Model: FPP5500; type: protective screen panel; condition: new
• Dimensions: 1272 x 742 x 53 mm (W x H x D); weight: 12.5 kg ±1 kg (27.6 lbs ±2.2 lbs)
• Protection: IP20 (DIN 40050); housing: coated metal parts; anti-reflective coating: yes
• Compatible: Siemens DSC5515-DC (10656054), Eizo CuratOR LX550W (6GF62008BA01), Eizo CuratOR LX550W JP (6GF62008BA04)

Frequently asked questions

• Is the Eizo FPP5500 compatible with the Siemens DSC5515-DC monitor? - Yes. The Siemens DSC5515-DC (part number 10656054, Eizo cross-reference 6GF62008BA00) is explicitly listed as a compatible monitor for the Eizo FPP5500 in the official Eizo FPP5500 / FPP5800 Installation Manual (IFU revision 07/2019).
• What is the difference between the Eizo FPP5500 and FPP5800? - The FPP5500 is designed for 55-inch monitors (Siemens DSC5515-DC and Eizo CuratOR LX550W); the FPP5800 covers 56-inch monitors (Eizo RadiForce LS580W, LS560W, Raptor RP5824, and Siemens DSC 5608-DC). They are not interchangeable — confirm your monitor model before ordering.
• Can the FPP5500 be installed on a ceiling-mounted monitor? - Yes, but the ceiling suspension must be verified to support the additional 12.5 kg ±1 kg the FPP5500 adds to the display assembly. The FPP5500 can be mounted without removing the monitor from the ceiling suspension during installation.
• Does Ampronix supply the Eizo FPP5500? - Yes. Ampronix supplies the Eizo FPP5500 Protective Screen Panel as a new unit. Contact Ampronix for availability and pricing.
• Does Ampronix service or repair Eizo protective screen accessories? - Yes. Ampronix also offers professional service, repair, and exchange replacement support for Eizo protective accessories and the broader RadiForce line.

Ampronix is an authorized Eizo distributor and supplies the FPP5500 Protective Screen Panel and a full range of Eizo surgical and medical display accessories. Ampronix also offers professional service, repair, and exchange replacement support for Eizo protective accessories and the broader RadiForce line.
