Eizo CuratOR MIR-1 4K/60p Medical Image Recorder
Eizo CuratOR MIR-1 4K/60p Medical Image Recorder
Eizo CuratOR MIR-1 4K Medical Image Recorder
- • 4K/60p H.265 / H.264 | JPEG, TIFF

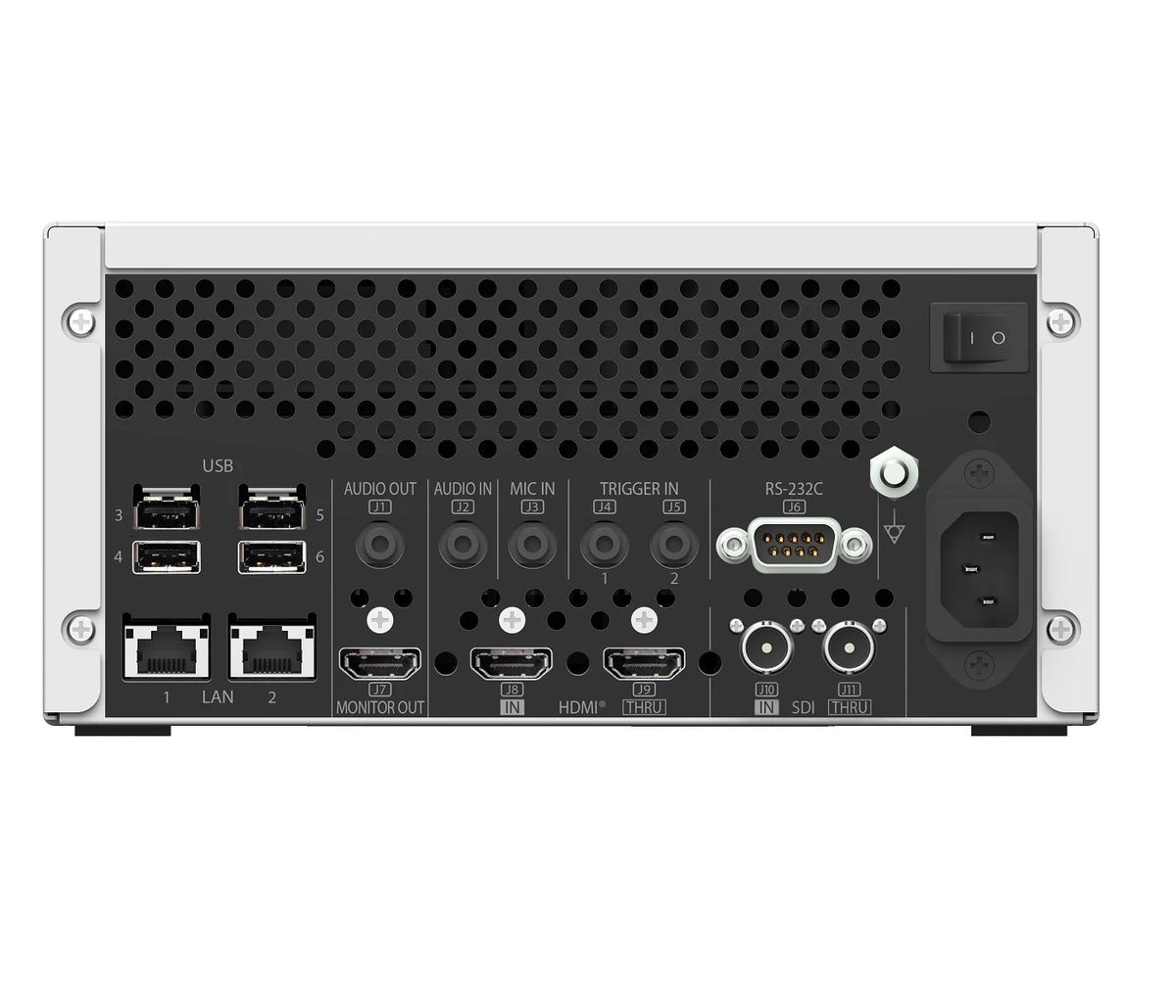

- • 12G-SDI + HDMI In | SDI + HDMI Out
- • 2 TB SSD | USB HDD/SSD Export
- • 5" Touch Panel | 2x LAN | 2x RS-232C
- • Optional Foot Switch | Rack Mountable
- • New | Part# MIR-1 / MIR1
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Eizo | Model: CuratOR MIR-1 | Part number: MIR-1 (also written MIR1)

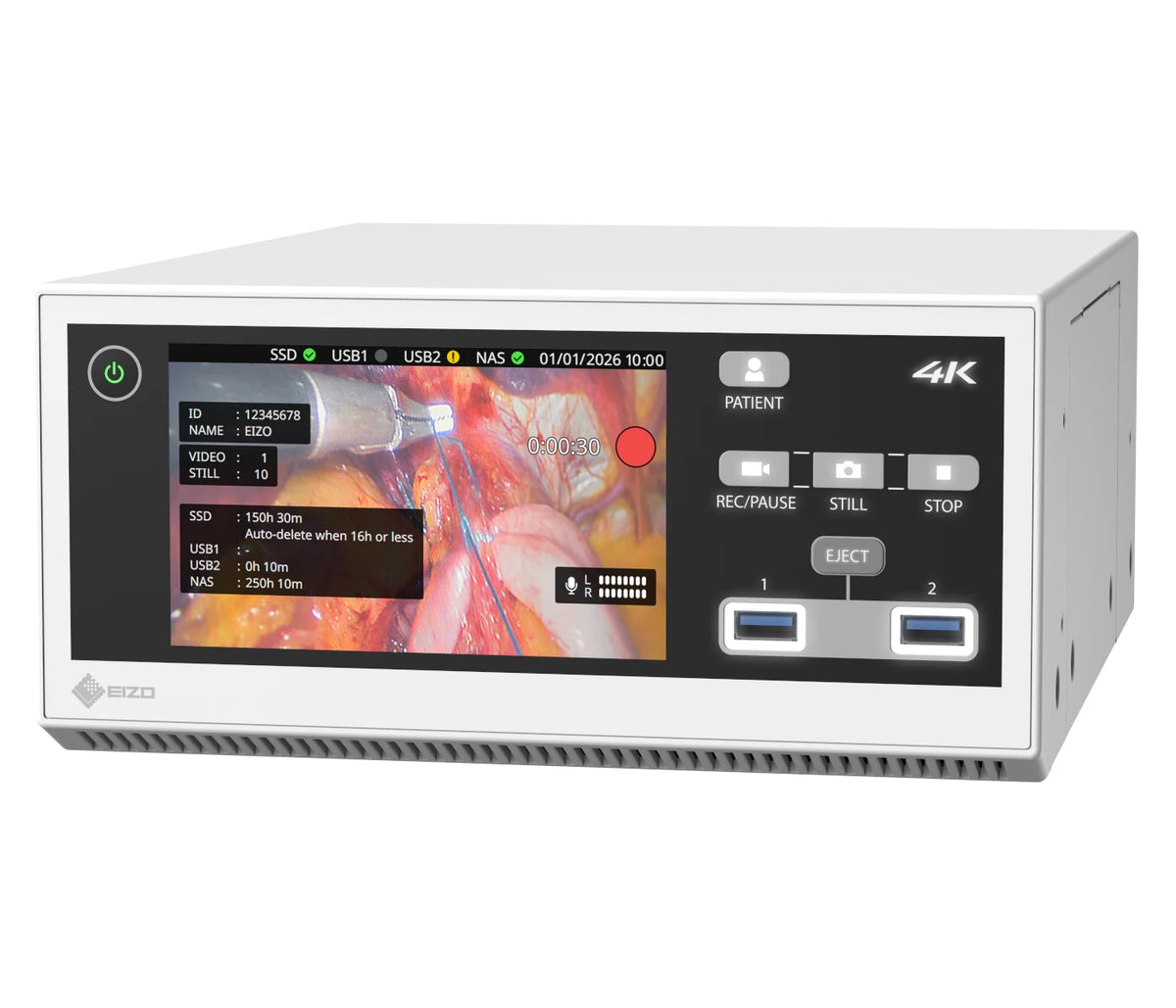

The Eizo CuratOR MIR-1 (MIR1) is a 4K medical imaging recorder that records and captures surgical and endoscopic video up to 3840 x 2160 at 60 fps, with a front touch panel for operation. Ampronix supplies the new Eizo CuratOR MIR-1 for hospital operating rooms, ambulatory surgery centers and endoscopy suites that need to document procedures.
Where it is used
The Eizo MIR-1 is used to document laparoscopic cholecystectomy, knee and shoulder arthroscopy, ureteroscopy, cystoscopy, hysteroscopy, functional endoscopic sinus surgery (FESS) and GI endoscopy, and to build surgical teaching and case review libraries. Eizo shows the MIR-1 recording status on CuratOR EX series surgical monitors.
System components and compatible part numbers
- Compatible monitors: Eizo CuratOR EX series surgical monitors, including the EX2742, EX3242, EX4342, EX4942 and EX5542, can show recording status
- Camera: SC430-PTR 4K surgical field camera (Eizo catalog pairing)
- Software: MIR Browser for viewing and managing recordings
- Optional accessory: foot switch with 5 m cable for start/stop and still capture
- Supplied: AC power cord, HDMI cable, three HDMI cable clampers, instructions for use
Frequently asked questions
Is the Eizo CuratOR MIR-1 (MIR1) available new?
Yes. Ampronix supplies the Eizo CuratOR MIR-1 as a new unit, subject to availability. Call Ampronix for current stock, pricing and lead time.
What video formats does the Eizo MIR-1 record?
H.265 and H.264 video in MP4 up to 3840 x 2160 at 60 fps or 30 fps, and JPEG or TIFF still images up to 3840 x 2160.
How does the Eizo MIR-1 connect to an operating room monitor?
It has 12G-SDI and HDMI monitor outputs. Eizo CuratOR EX series monitors can display the MIR-1 recording status, for example the EX2742 through its RS-232C port.
How do I export recordings from the Eizo MIR-1?
Recordings are stored on the internal 2 TB SSD and can be exported to a USB HDD or USB SSD through the front USB ports, or managed over the network with MIR Browser.
Does Ampronix service and exchange the Eizo MIR-1?
Yes. Ampronix offers sales, service, repair and exchange replacement for the Eizo CuratOR MIR-1. Call Ampronix for a free evaluation and quote.
Ampronix is an authorized Eizo distributor and carries a full range of Eizo CuratOR surgical monitors, recorders and accessories.
Also referenced as: MIR1, MIR-1, MIR 1, Eizo MIR-1, Eizo MIR1, CuratOR MIR-1, Curator-MIR-1, CuratOR MIR1, Eizo 4K recorder.
Related: EIZO products.
