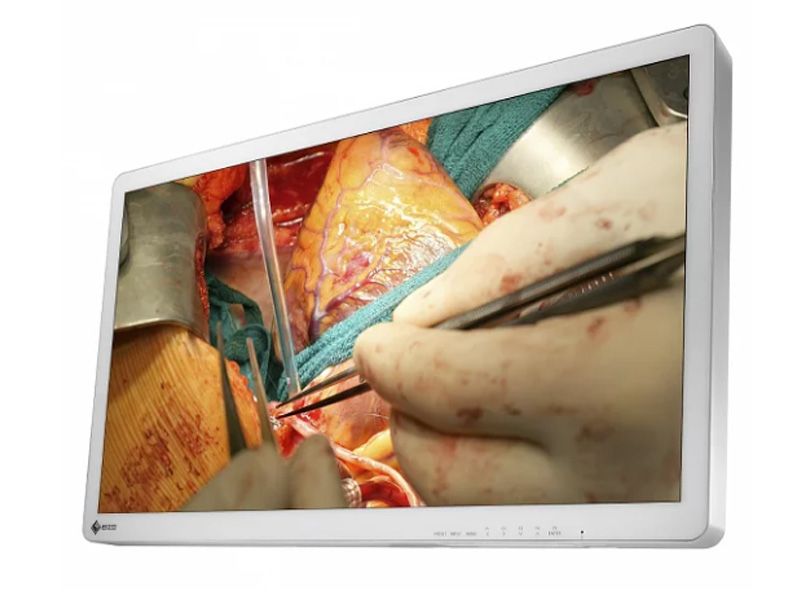

Eizo EX3242 32" 4K UHD Surgical Display Monitor
Eizo EX3242 32" 4K UHD Surgical Display Monitor
Eizo EX3242 32 inch 4K Surgical Monitor
- • Eizo EX3242 32" 4K UHD Surgical Display Monitor
- • 850 cd/m2 luminance and 1800:1 contrast
- • DisplayPort, HDMI, DVI-D and 3G/12G-SDI inputs
- • Service, repair, replacement and exchange
- • Part# EX3242, Sales and Repair
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Eizo EX3242 32" 4K UHD Surgical display monitor. Ampronix offers new and refurbished Eizo EX3242 units, service and repair, and replacement and exchange.
Manufacturer: Eizo, Model: CuratOR EX3242, Also written: EX3242 (EX-3242)
The Eizo CuratOR EX3242, also written EX-3242, is a 32-inch 4K UHD surgical monitor for endoscopy, microsurgery, and other high-precision procedures. Note: the related EX3242-3D is a separate 31.5-inch Full HD 3D model, not a hyphen variant of this 4K unit.
Key capabilities
- 32-inch (81.3 cm) TFT color LCD panel (IPS) with energy-efficient LED backlight
- 4K UHD resolution (3840 x 2160, 16:9), four times Full HD detail for endoscope and operating microscope images
- 850 cd/m2 calibrated luminance and 1800:1 contrast ratio
- DisplayPort, HDMI, DVI-D, 3G-SDI and 12G-SDI (BNC) inputs; DisplayPort, 12G-SDI, and DVI-D outputs
- 178/178-degree viewing angle, 20ms (black-white-black) response time
- 13.2 kg without stand; VESA 200x200mm or 100x100mm mounting
Where it is used
The EX3242 / EX-3242 is used in operating rooms for laparoscopy, endoscopy, and microsurgery where a compact 32-inch 4K panel is preferred for cart or wall mounting.
Specifications at a glance
- Screen: 32-inch (81.3 cm) TFT color LCD (IPS); resolution: 3840 x 2160 (4K UHD)
- Brightness: 850 cd/m2 calibrated; contrast: 1800:1; response: 20ms (black-white-black); viewing angle: 178/178 deg
- Power: 199W maximum, AC 100-240V 50/60Hz; weight: 13.2 kg without stand
- Mount: VESA 200x200mm (M6) or 100x100mm (M4)
- Model: EX3242 / EX-3242; certifications: IEC/EN 60601-1, ANSI/AAMI ES60601-1, CE/UKCA Medical Device, RoHS
Model: EX3242
Related: Surgical Display Monitors, EIZO products.
Frequently asked questions about the Eizo EX3242
Is the Eizo EX3242 surgical display monitor available for sales, service and repair, replacement and exchange?
Yes. Ampronix offers new and refurbished units of the Eizo EX3242, plus service and repair, replacement and exchange, subject to availability. Call Ampronix for current availability and a quote.
Does Ampronix repair the Eizo EX3242?
Yes. Ampronix provides service and repair for the EX3242 with free evaluation and fast turnaround. Call Ampronix for a repair quote.
Can I exchange or replace my EX3242?
Yes. Ampronix offers replacement and exchange options for the EX3242. Call Ampronix to confirm availability and pricing.
Where can I buy a Eizo EX3242 surgical display monitor?
Ampronix sells the Eizo EX3242. Call Ampronix for current availability, pricing and lead time.
Should I repair or replace my EX3242?
Ampronix can quote repair, exchange or replacement for the EX3242 so you can compare options. Call Ampronix for a free evaluation.
What should I have ready when I request a quote for the EX3242?
Have the model number (EX3242), the serial number from the unit label if you have one, and whether you need a unit, a repair or an exchange.
What are the key features of the Eizo EX3242?
Key points for the Eizo EX3242: 32-inch (81.3cm) TFT IPS Panel, 4K UHD 3840x2160; 850 cd/m2 Luminance, 1800:1 Contrast, HDR Support; BT.2020 Color Gamut, Optical Bonding, PinP & PbyP Display; DisplayPort, HDMI, DVI-D, 3G/12G-SDI (BNC) Inputs. Call Ampronix to confirm details for your application.
Is the EX3242 the same as the EX3242-3D?
No. The EX3242 is a 32-inch 4K UHD 2D monitor, while the EX3242-3D is a separate 31.5-inch Full HD passive 3D display. They share the CuratOR platform but are different part numbers.
