Manufacturer: Edan | Model: SE-12 Express | Part number: SE-12 Express (also written SE-12Express)

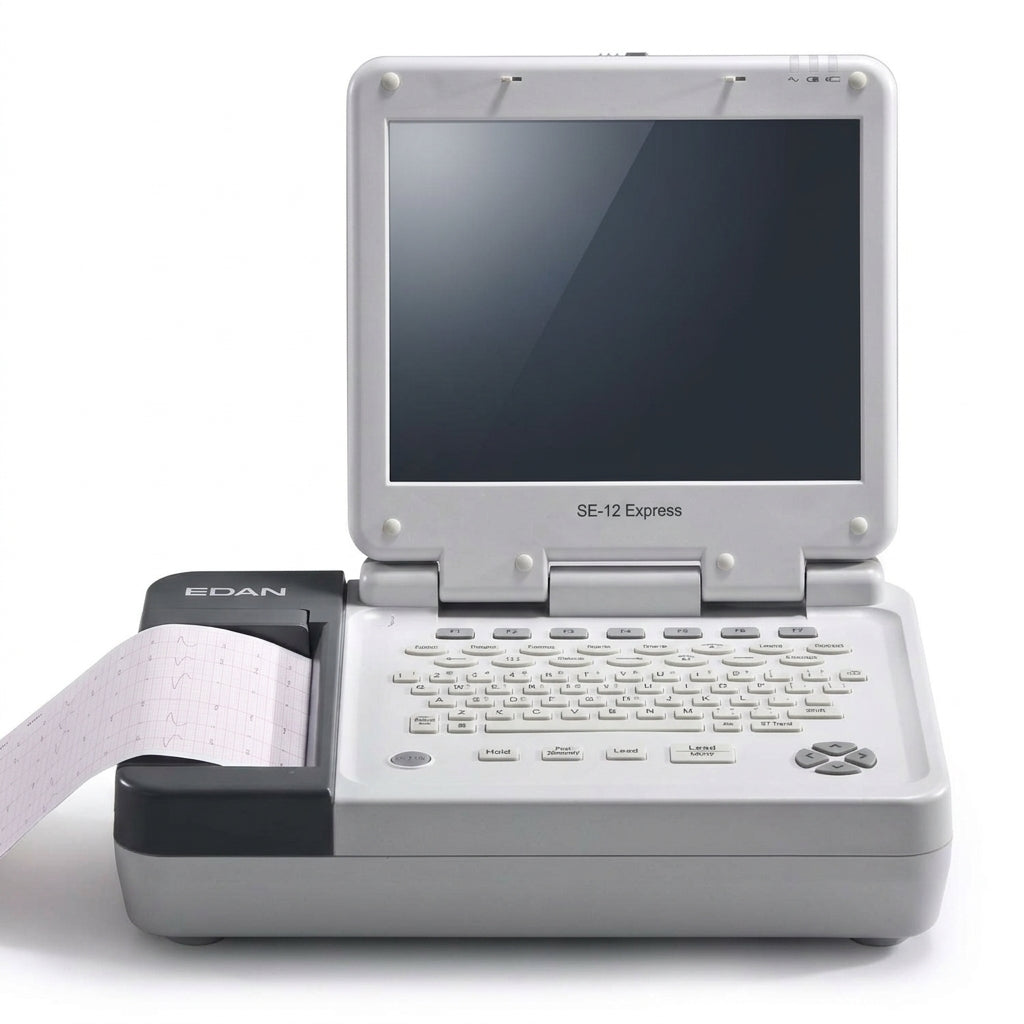

The Edan SE-12 Express is a Refurbished 12-channel electrocardiograph built for both resting and exercise ECG testing. A foldable 12.1 inch high-resolution color TFT touch screen and alphanumeric keyboard give clinicians one-touch operation, while comprehensive digital filtering resists baseline drift, AC interference, and EMG noise for a clean waveform. Ampronix supplies the Edan SE-12 Express and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Edan electrocardiograph line.

Key capabilities

• 12.1 inch foldable color TFT touch screen, SVGA 800 x 600 resolution
• Resting and exercise ECG modes with customizable stress test protocols
• Automatic measurement and interpretation validated against the CSE database
• Heart rate variability (HRV) analysis and 120-second waveform review
• Built-in Ethernet and RS-232 interfaces, exports to DAT, PDF, SCP, FDA-XML, and DICOM
• Internal memory stores up to 200 ECGs with rechargeable lithium-ion battery

Where it is used

The Edan SE-12 Express supports resting 12-lead ECG, exercise and stress ECG testing, and arrhythmia screening in cardiology departments, outpatient clinics, occupational health screening programs, and primary care exam rooms where a portable, high-throughput electrocardiograph is needed.

Specifications at a glance

• Screen: 12.1 in foldable color TFT touch screen, SVGA (800 x 600)
• Memory: up to 200 ECGs internal storage, 120-second waveform review
• Interfaces: Ethernet, RS-232; print speeds 5-50 mm/s; sensitivity 2.5-20 mm/mV, AGC
• Power input: AC 100-240V, 50/60Hz | Dimensions: 420 x 330 x 120 mm
• Model: SE-12 Express (also written SE-12Express)

Frequently asked questions

• Is the Edan SE-12 Express available refurbished? - Yes, Ampronix supplies Ampronix-tested refurbished Edan SE-12 Express units for purchase or exchange.
• How is the Edan SE-12 Express different from the Edan SE-1201? - The SE-12 Express uses a larger 12.1 inch foldable touch screen and built-in thermal printer, while the SE-1201 is a compact 12-channel ECG platform; both run automatic CSE-validated interpretation.
• Does Ampronix service the Edan SE-12 Express? - Yes, Ampronix offers professional sales, service, repair, and exchange replacement for the Edan SE-12 Express and the broader Edan ECG line.

Ampronix supplies the Edan SE-12 Express and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Edan electrocardiograph line.

Also referenced as Edan SE12Express, Edan SE-12-Express, Edan SE-12 ECG, part number SE12Express.
