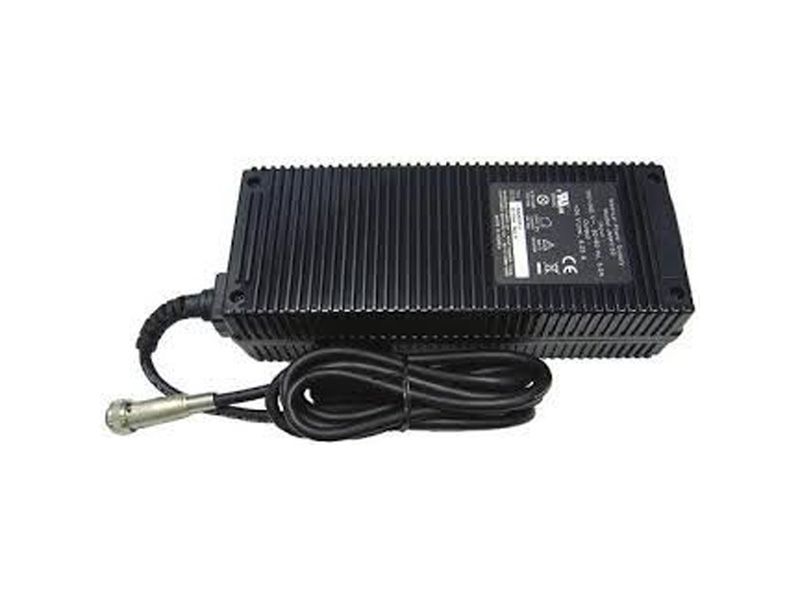

Bridgepower JMW1150KA-24-00-F-04 Power Supply
Input
Rated Voltage 100 240 Vac, Normal
Voltage Range 90 264 Vac
Rated Line Frequency: 50 60 Hz
Line Frequency Range: 47 63 Hz
Current: 3.00A max at 90Vac input
Protection: Dual internal primary current fuse: 250Vac / 5.0A
Inrush limiting : 50A PEAK at 90~264Vac, 50~60Hz
Configuration Inlet type : IEC320-C14,C8
Output
Voltage /Current: +24Vdc at 6.25A
Line regulation: +24Vdc +/-1%
Load regulation: +24Vdc +/-5%
Ripple and Noise 240mV p-p Max @ 90-264Vac, 50~60Hz
: at 20MHz Bandwidth and full load.
Transient Response: 0.5ms for 50% Load change Typ
Hold-up time: 20msec min. Over entire input range
Protection: Over-current Protection : 8.125A~9.9A, Short Circuit Protection, Optional Over Voltage Crowbar.
