Details

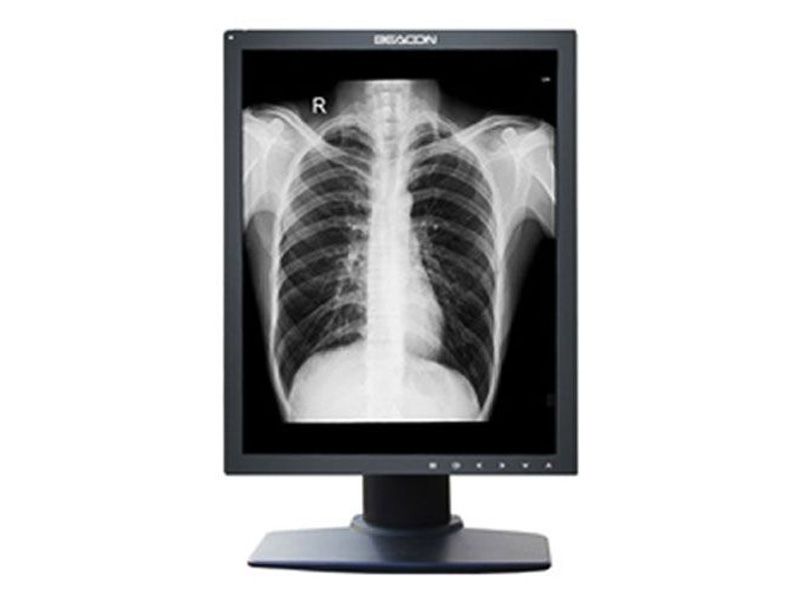

Beacon G22S+ (G22S Plus) 21.3-inch 2MP diagnostic grayscale display, high brightness, high contrast, wide viewing angle and low power consumption, can be widely used in various medical imaging equipment and PACS systems.

G22S+ maintained throughout the life of the brightness stability and the ability to conduct continuous DICOM calibration, built-in 14bit LUT, meet medical imaging high precision requirements.

G22S+ LED backlit panel unit, ultra-thin design.

Model: G22S+

Model: G22SP+ with anti-scratch protective screen

Specifications

Manufacturer: Beacon

Condition: Refurbished

Modality: Diagnostic

Calibrated Luminance: 500cd/m² Typ

Certifications: CE (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, IEC60601-1, FCC-B, CCC, FDA 510(K) ,RoHS, China RoHS, China Energy

Contrast Ratio: 1800:1 Typ

Dimensions (With Stand): 369 (W) x 511-596 (H) x 220 (D) mm

Maximum Luminance: 20900cd/m² Typ

Mounting Options: VESA 100 x 100

Pixel Pitch: 0.270 x 0.270mm

Power Consumption: 50W max.

Power Input: DC 12V

Power Save Mode: EPA, VESA

Resolution: 1600 x 1200

Response Time: 20ms. Typ.

Screen Size: 21.3"

Screen Technology: IPS

Video Inputs: Display Port: 20 pin DVI-D : 24 pin VGA : D-Sub 15 pin

Viewing Angle: 178° Typ

Warranty: 3 Years

Weight (With Stand): 8 kg

Resources

• Beacon-G22Splus-Brochure-EN-rev-b.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Beacon G22S+ 2MP Diagnostic Display Monitor

Name: Beacon G22S+ 2MP Diagnostic Display Monitor
Brand: Beacon
SKU: BEACON-G22SPLUS
Availability: InStock

Manufacturer: Beacon

Type: General Radiology Displays

Beacon G22S+ (G22S Plus) 21.3-inch 2MP Medical Diagnostic Display Monitor

• Compliant with DICOM standard, ensure accurate medical images display
• Strict medical certifications can meet requirements in all clinical application areas
• Backlight stabilization system guarantee the consistency during long-term use
• Ergonomic design supports both portrait and landscape display
• ALL monitors feature with LED backlight panel unit, ultralight & ultrathin design, more environmentally friendly

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
