Details

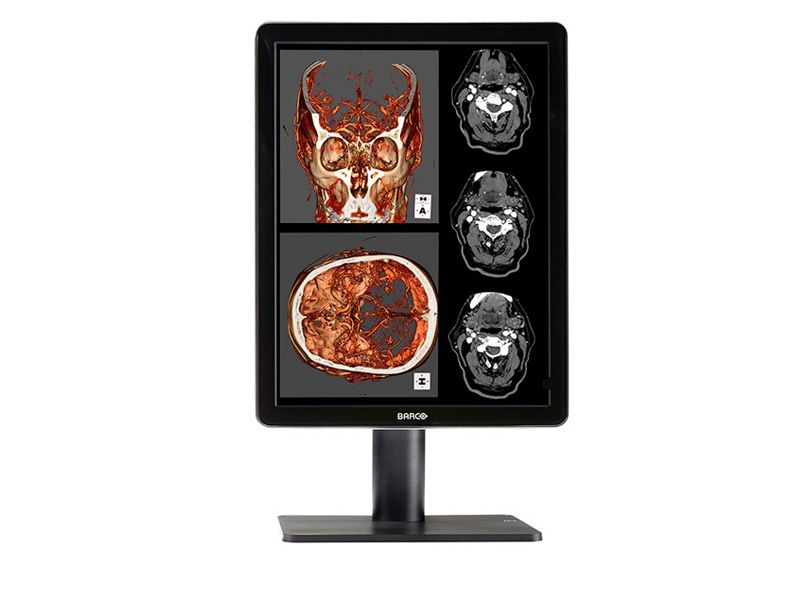

Barco Nio Color 2MP LED MDNC-2221 is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.

Equipped with high-bright LED backlights, Nio Color 2MP LED delivers excellent brightness and more shades of gray to detect subtle details more quickly. The unique front-of-screen sensor ensures you see consistent and precise images at all times for confident diagnoses.

Part Number: K9601780 - Barco Nio MDNC-2221 Color Diagnostic Display Sys, 2MP, 1-Head, No Card

Part Number: K9601789 - Barco Nio MDNC-2221 Color Diagnostic Display Sys, 2MP, 2-Head, No Card

Part Number: K9301649C 1 Head without graphics card

Part Number: K9301648C 1 Head without graphics card

Part Number: K9301648B 1 Head without graphics card

Part Number: K9301648A 1 Head without graphics card

Part Number: K9602524 1 Head with MXRT-5600 graphics card

Part Number: K9602521 1 Head with MXRT-2500 graphics card

Part Number: K9602530 2 Head with MXRT-5600 graphics card

Part Number: K9602528 2 Head with MXRT-2500 graphics card

Part Number: K9601263, Model: MDNC-2221 HE

Part Number: K9601264, Model: MDNC-2221 HE

Specifications

Manufacturer: Barco

Condition: Refurbished

Modality: Diagnostic

Accessories: User guide Documentation disc System disc Video cable Mains cable(s) USB cable External power supply

Calibrated Luminance: 500 cd/m²

Certifications: CE1639 (MDD 93/42/EEC; A1:2007/47/EC class IIb product) CE - 2014/30/EU CE - 93/42/EEC; A1:2007/47/EC class II b IEC 60601-1(ed.3); IEC 60601-1(ed.3 am1) ANSI/AAMI ES60601-1(2005+C1:09+A2:10+A1:12) CAN/CSA-C22.2 No. 60601-1(2014) EN 60601-1-2:2015 EN 6060

Contrast Ratio: 1400:1

Country of Manufacture: Taiwan, Province of China

Dimensions (With Stand): Portrait: 378 x 525~625 x 235 mm, Landscape: 491 x 466~566 x 235 mm

Dimensions (Without Stand): Portrait: 378 x 491 x 83 mm, Landscape: 491 x 378 x 83 mm

Maximum Luminance: 800 cd/m²

Mounting Options: VESA (100 mm)

Pixel Pitch: 0.27 mm

Power Consumption: 50 W (nominal)

Power Input: 100–240 VAC, 2 A, 50–60 Hz

Power Save Mode: < 1 W (standby)

Resolution: 2MP (1600 x 1200 pixels)

Response Time: 10 ms

Screen Size: 540 mm (21.3")

Screen Technology: IPS-Pro

Video Inputs: 1x DVI, 1x DisplayPort

Viewing Angle: 178°

Warranty: 5 years, including 20000 hrs backlight warranty

Weight (With Stand): With protective cover: 12.6 kg, Without protective cover: 11.3 kg

Weight (Without Stand): With protective cover: 7.6 kg, Without protective cover: 6.3 kg

Resources

• Barco-Nio-Color-2MP-MDNC2221-K9301648B-Brochure-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Barco MDNC-2221 2MP Diagnostic Radiology Monitor

Name: Barco MDNC-2221 2MP Diagnostic Radiology Monitor
Brand: Barco
SKU: BARCO-NIO-COLOR-2MP-LED-MDNC2221
Availability: InStock

Manufacturer: Barco

Type: General Radiology Displays

Barco Nio MDNC-2221 Nio Color 2MP Diagnostic Display Monitor

• 2MP high-bright color display system
• Color medical display with 1600 x 1200 resolution
• Barco LED technology to unveil the subtlest details
• Front sensor for on-demand image quality checks
• Ampronix is a Authorized Barco Reseller

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: BARCO-NIO-COLOR-2MP-LED-MDNC2221
