Barco MXRT-2700 2GB small form factor display controller
- • Barco MXRT-2700 medical display controller graphics card
- • 2GB GDDR5 display memory, 64-bit interface
- • 1 DisplayPort 1.4 and 2 mini DisplayPorts 1.4
- • DICOM calibration support
- • Sales, fast turnaround
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

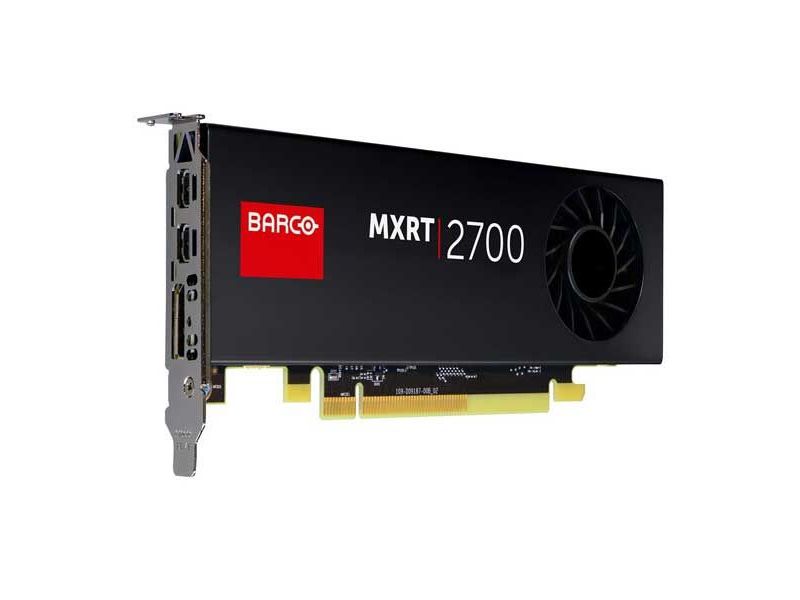

Barco MXRT-2700 (MXRT2700) medical display controller graphics card. Ampronix supplies the Barco MXRT-2700. Both the MXRT-2700 and MXRT2700 model numbers are supported.
The Barco MXRT-2700 (also referenced as the Barco MXRT2700, part K9306045) is a display controller for diagnostic medical imaging workstations. The MXRT-2700 / MXRT2700 drives compatible Barco medical displays with DICOM calibration support.
Model: MXRT-2700 / MXRT2700
Related: Barco products.
Barco MXRT-2700 Display Controller K9306045 specifications
The Barco MXRT-2700 is a compact display controller for radiology workstations built on an AMD Radeon Pro graphics accelerator, supporting 10-bit grayscale and 30-bit color.
- Bus: PCIe Gen3 x8
- Display memory: 2 GB
- Outputs: 1 DisplayPort 1.4, 2 Mini DisplayPort 1.4
- Included: 2 Mini-DP to DP adapters
- Power: Under 40 W max
- Form factor: Single width, 168 x 60 mm
- OS: Windows 11 and 10 (64-bit)
- APIs: DirectX 12, Vulkan 1.1, OpenGL 4.5
Frequently asked questions about the Barco MXRT-2700
Is the Barco MXRT-2700 available?
Yes. Ampronix supplies the Barco MXRT-2700 (MXRT2700), subject to availability. Both the MXRT-2700 and MXRT2700 versions are covered. Call Ampronix for current availability and a quote.
Where can I buy the Barco MXRT-2700?
Ampronix sells the Barco MXRT-2700 (MXRT2700) and ships to medical facilities. Call Ampronix for pricing and lead time.
What should I have ready when I request a quote for the MXRT-2700?
Have the model number (MXRT-2700 or MXRT2700) and the quantity you need. Ampronix will confirm availability and pricing.
What are the key features of the Barco MXRT-2700?
Key points for the Barco MXRT-2700: 2GB GDDR5 display memory, 64-bit interface; 1 DisplayPort 1.4 and 2 mini DisplayPorts 1.4; DICOM calibration support. Call Ampronix to confirm details for your application.
