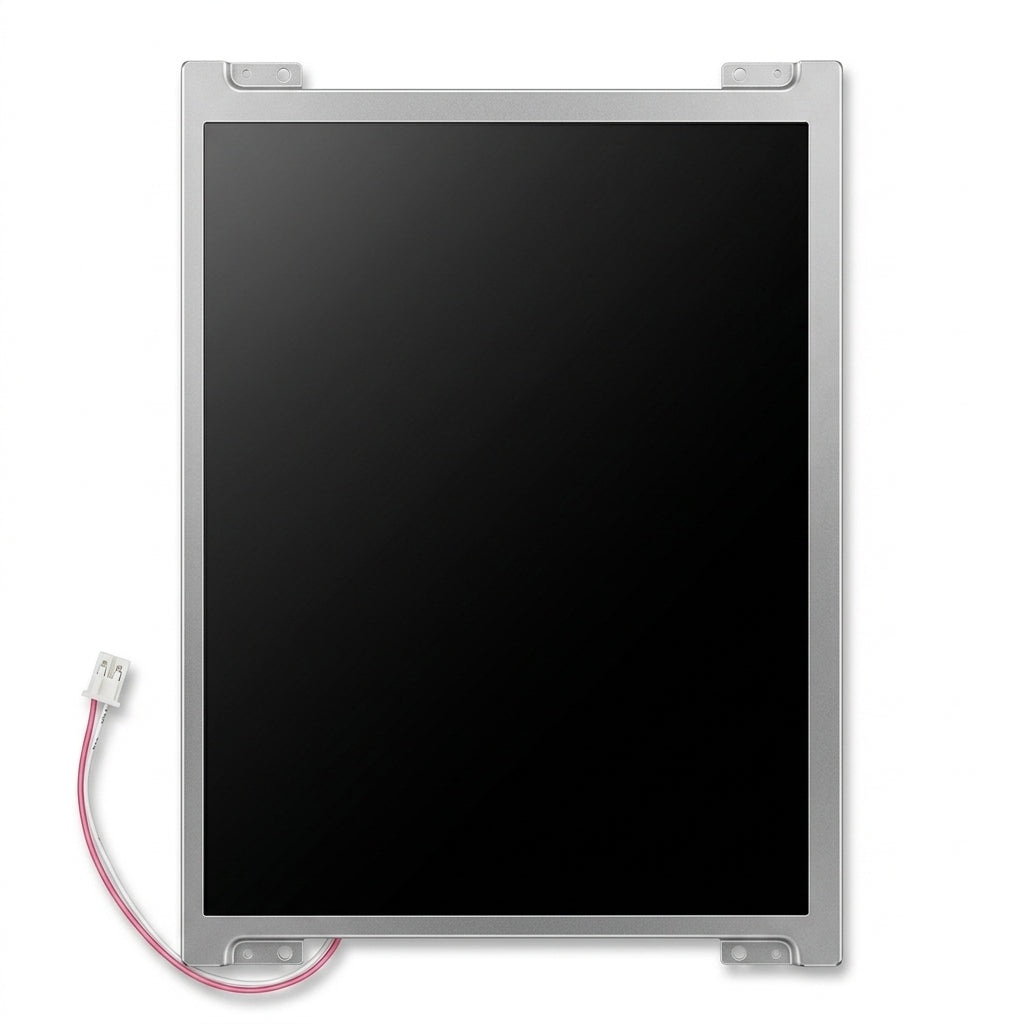

AUO G084SN02 8.4 Inch SVGA Industrial LCD Display Panel
AUO G084SN02 8.4 Inch SVGA Industrial LCD Display Panel
AUO G084SN02 Key Features
- • AUO G084SN02 industrial LCD display panel
- • 8.4 inch SVGA 800 x 600 active matrix TFT
- • LVDS interface with CCFL backlight
- • Sales, fast turnaround
- • Part# G084SN02
This product has been discontinued by the manufacturer. Contact us for replacement options.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
AUO G084SN02 industrial LCD display panel. Ampronix supplies the AUO G084SN02.
The AUO G084SN02 is an 8.4-inch SVGA (800 x 600) active matrix TFT LCD replacement panel for medical monitors, patient monitoring accessories, and industrial control terminals fitted with this AU Optronics module.
Model: G084SN02
Related: Refurbished products.
AUO G084SN02 8.4 Inch SVGA Industrial LCD Display Panel specifications
The AUO G084SN02 is an 8.4-inch SVGA TFT-LCD panel with a single-channel LVDS interface and CCFL backlight.
- Screen Size: 8.4 in
- Resolution: 800 x 600 (SVGA)
- Brightness: 200 cd/m2 typical
- Contrast Ratio: 500:1 typical
- Interface: 1-channel LVDS, 3.3 V
- Colors: 262K
- Backlight: CCFL, 20,000 hr typical life
- Outline: 198.2 x 143.6 x 7.6 mm max
Frequently asked questions about the AUO G084SN02
Is the AUO G084SN02 available?
Yes. Ampronix supplies the AUO G084SN02, subject to availability. Call Ampronix for current availability and a quote.
Where can I buy the AUO G084SN02?
Ampronix sells the AUO G084SN02 and ships to medical facilities. Call Ampronix for pricing and lead time.
What should I have ready when I request a quote for the G084SN02?
Have the model number (G084SN02) and the quantity you need. Ampronix will confirm availability and pricing.
What are the key features of the AUO G084SN02?
Key points for the AUO G084SN02: 8.4 inch SVGA 800 x 600 active matrix TFT; LVDS interface with CCFL backlight. Call Ampronix to confirm details for your application.
