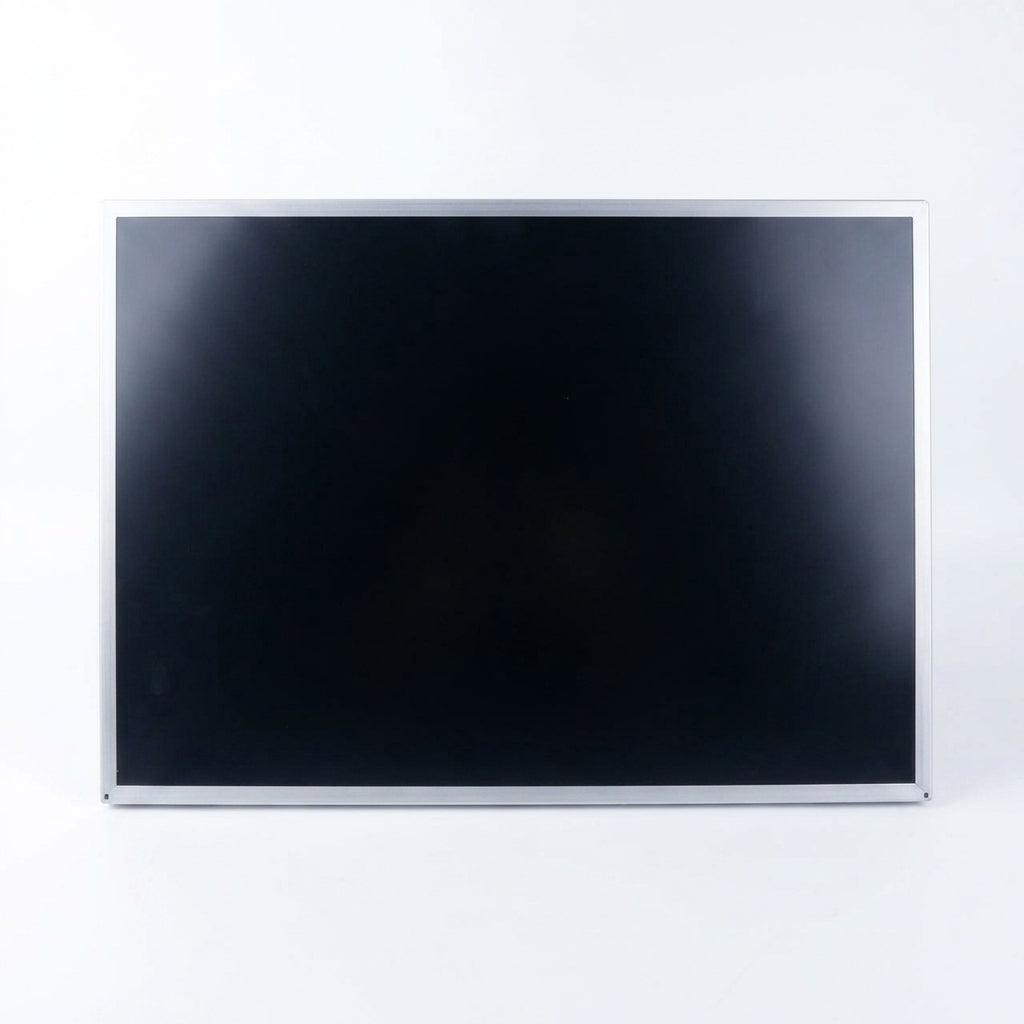

AU Optronics M190EG01 19 Inch SXGA LCD Display Panel
AU Optronics M190EG01 19 Inch SXGA LCD Display Panel
AU Optronics M190EG01 LCD Panel
- • AU Optronics M190EG01 LCD display panel
- • 19 inch SXGA 1280 x 1024 active matrix
- • 30 pin interface
- • Service and repair, free evaluation
- • Part# M190EG01
This product has been discontinued by the manufacturer. Contact us for Service & Repair options.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
AU Optronics M190EG01 LCD display panel. Ampronix provides professional service and repair for the AU Optronics M190EG01 with free evaluation and fast turnaround.
The AU Optronics M190EG01 is a 19-inch SXGA (1280 x 1024) active matrix LCD panel with 30-pin interface compatible with standard VGA and DVI controller kits for open-frame monitor and medical imaging system integration.
Model: M190EG01
AU Optronics M190EG01 19 Inch SXGA LCD Display Panel specifications
The AU Optronics M190EG01 is a 19-inch SXGA TFT-LCD panel with a dual-channel LVDS interface and CCFL backlight.
- Screen Size: 19.0 in
- Resolution: 1280 x 1024 (SXGA)
- Brightness: 300 cd/m2 typical
- Contrast Ratio: 1300:1 typical
- Interface: Dual-channel LVDS, 30-pin
- Colors: 16.7M
- Backlight: CCFL, 50,000 hr typical life
- Outline: 396 x 324 x 17.5 mm
Frequently asked questions about the AU Optronics M190EG01
Does Ampronix offer service and repair for the AU Optronics M190EG01 LCD display panel?
Yes. Ampronix provides professional service and repair for the AU Optronics M190EG01 with free evaluation and fast turnaround. Call Ampronix for a quote.
Who repairs the AU Optronics M190EG01?
Ampronix repairs the AU Optronics M190EG01. Call Ampronix to start a repair quote.
How much does it cost to repair the M190EG01?
The cost depends on the condition of the unit and the fault found. Call Ampronix for a free evaluation and a repair quote.
How long does M190EG01 repair take?
Ampronix offers fast turnaround on the M190EG01. Call Ampronix for a timeline based on your unit.
What should I have ready when I request a repair for the M190EG01?
Have the model number (M190EG01), the serial number from the unit label, and a short description of the problem. Ampronix will take it from there.
What are the key features of the AU Optronics M190EG01?
Key points for the AU Optronics M190EG01: 19 inch SXGA 1280 x 1024 active matrix; 30 pin interface. Call Ampronix to confirm details for your application.
