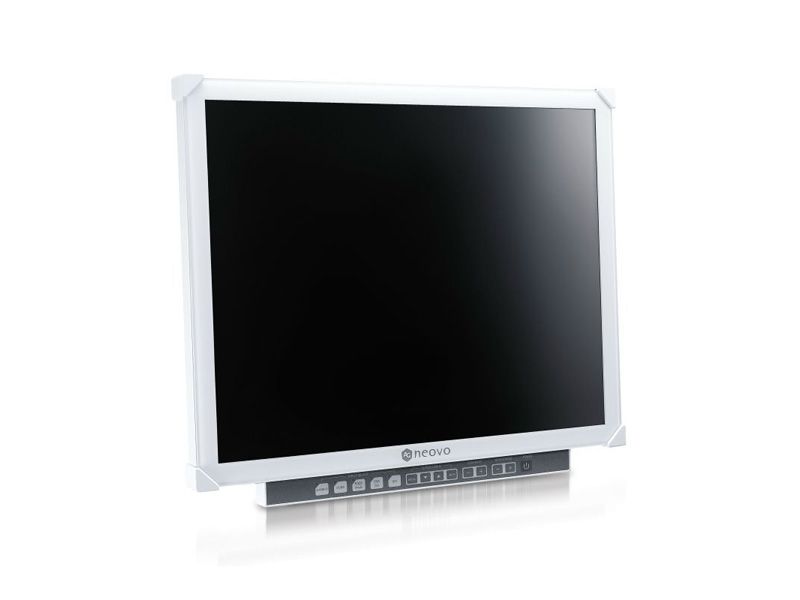

AG Neovo ER-19 19" SXGA Endoscopy Surgical LCD Monitor

Details

AG Neovo ER-19 is a 19 Inch Endoscopy LCD Monitor. The AG Neovo ER-19, 1.3 Mega Pixel Endoscopy color LCD Display, is designed specifically for medical imaging / surgical environments/video endoscopy cart installations to meet demanding surgical procedures. The ER-19 is a feature-rich, high-resolution 8-bit LCD display designed for the most advanced, performance-critical medical environments. Exceptional color detail control, programmable preset settings and multiple I/O connector versatility deliver superior image reproduction for endoscopic, surgical and other medical applications. Fanless design, sturdy metal housing, and NeoV™ Optical Glass also provide excellent impact, water and dust resistance.

Specifications

Manufacturer: AG Neovo

Condition: Refurbished

Modality: Surgical

Accessories: D-Sub cable, DVI cable, warranty card, user manual, AC power cord 1.8M; Power adaptor 3M for (a)

Certifications: UL/CUL(UL60601-1, CAN/CSA C22.2 No.601.1), FCC, CB(IEC60601-1), CE(IEC60601-1, IEC60601-2, EN60601-1, EN60601-1-2, IP22), WEEE, RoHS

Contrast Ratio: 450:1 (Typical)

Dimensions (Without Stand): 420 x 365.5 x 82.5mm (16.5" x 14.4" x 3.2")

Maximum Luminance: 300 cd/m²

Mounting Options: (100mm)

Pixel Pitch: 0.294 x 0.294mm

Power Consumption: <265 W

Power Input: AC 100-240V, 1.2~0.6A, 50/60Hz

Power Save Mode: <15 W (Off)

Resolution: SXGA 1280 x 1024

Response Time: 10 ms (GTG)

Screen Size: 19 Inches

Screen Technology: TFT Active Matrix LCD

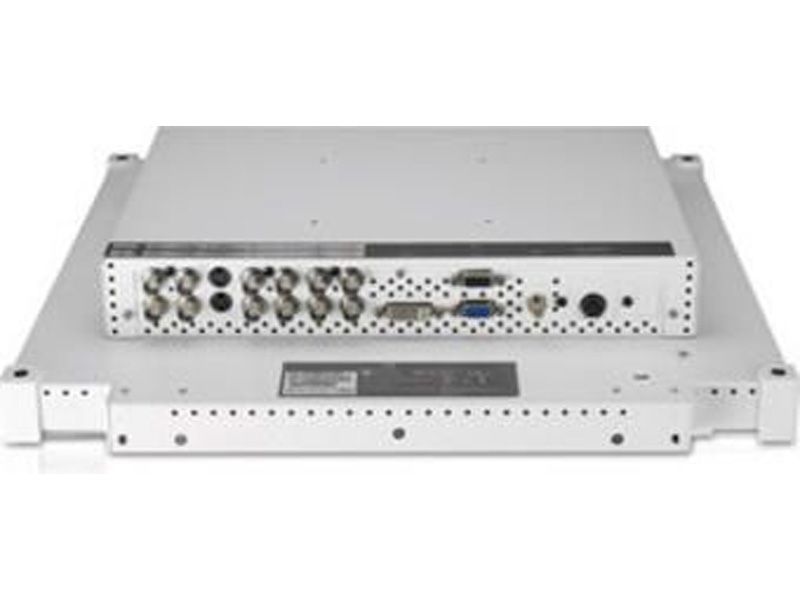

Video Inputs: Analog 15-Pin D-Sub (female), Digital 24-Pin DVI-D, S-Video 4-Pin mini din, CVBS BNC x 1, Component/RGBs BNC x 4, SD-SDIBNC x 1

Viewing Angle: 170°/170° (Typical)

Weight (Without Stand): 7.88 Kg (17.4 lbs)

Resources

• AG-Neovo-ER19-DataSheet-EN.pdf

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AG Neovo ER-19 19" SXGA Endoscopy Surgical LCD Monitor

Name: AG Neovo ER-19 19" SXGA Endoscopy Surgical LCD Monitor
Brand: AG Neovo
SKU: AG-NEOVO-ER19
Availability: InStock

Manufacturer: AG Neovo

Type: Surgical Displays

AG Neovo ER-19 19-inch SXGA Endoscopy Surgical LCD Monitor

• Supreme Performance & Natural Color
• 12-Bit Gamma Correction
• Monochrome Switch (DICOM)
• IP 22 Dust/Water Resistance Technology
• Fan-less Design
• Compliant to Medical Safety Standard

This model is out of production

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: AG-NEOVO-ER19

Details

Specifications

Manufacturer: AG Neovo

Condition: Refurbished

Modality: Surgical

Accessories: D-Sub cable, DVI cable, warranty card, user manual, AC power cord 1.8M; Power adaptor 3M for (a)

Certifications: UL/CUL(UL60601-1, CAN/CSA C22.2 No.601.1), FCC, CB(IEC60601-1), CE(IEC60601-1, IEC60601-2, EN60601-1, EN60601-1-2, IP22), WEEE, RoHS

Contrast Ratio: 450:1 (Typical)

Dimensions (Without Stand): 420 x 365.5 x 82.5mm (16.5" x 14.4" x 3.2")

Maximum Luminance: 300 cd/m²

Mounting Options: (100mm)

Pixel Pitch: 0.294 x 0.294mm

Power Consumption: <265 W

Power Input: AC 100-240V, 1.2~0.6A, 50/60Hz

Power Save Mode: <15 W (Off)

Resolution: SXGA 1280 x 1024

Response Time: 10 ms (GTG)

Screen Size: 19 Inches

Screen Technology: TFT Active Matrix LCD

Video Inputs: Analog 15-Pin D-Sub (female), Digital 24-Pin DVI-D, S-Video 4-Pin mini din, CVBS BNC x 1, Component/RGBs BNC x 4, SD-SDIBNC x 1

Viewing Angle: 170°/170° (Typical)

Weight (Without Stand): 7.88 Kg (17.4 lbs)

Resources

• AG-Neovo-ER19-DataSheet-EN.pdf
